HVAC System Liquid Tank Gel Seal HEPA Air Filter

  • 50 - 99 Units
    $48.00
  • 100 - 499 Units
    $47.00
  • >=500 Units
    $46.00
Filtration Grade:
Hepa Filter
Medium Material:
FiberGlass
Model Number:
Customized
Lead Time:
Quantity(Units) 1 - 50 51 - 100 101 - 500 >500
Est. Time(days) 5 7 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Efficiency:
99.99%
Construction:
Box Filter
Porosity:
0.3u
Place of Origin:
Sichuan, China
Brand Name:
TRAIRF
Dimension(L*W*H):
450*450*93
Weight:
Light Weight
Certification:
ISO9001 ;CE
Warranty:
Unavailable
Product name:
HVAC System Liquid Tank Gel Seal HEPA Air Filter
Application:
Cleanroom, Dust Free Room
Type:
Panel Hepa Filter
Material:
Fiber-glass
Frame:
Aluminium alloy
Color:
Silver
OEM Service:
Acceptable
Work temperature:
100 degree
Initial Pressure:
220Pa
Humidity:
80%
After-sales Service Provided:
Online support
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month HVAC System Liquid Tank Gel Seal HEPA Air Filter
Packaging & Delivery
Packaging Details
Packaging Details
1.One piece in a plastic bag then in a carton
2.According to Customers' requirement
Delivery Time
7-20days
Port
Shenzhen
Lead Time :
Quantity(Units) 1 - 50 51 - 100 101 - 500 >500
Est. Time(days) 5 7 15 To be negotiated
Video Description
Product Description

HVAC System Liquid Tank Gel Seal HEPA Air Filter


Applications:

HEPA liquid tank gel seal air filter are main used for Clean room,building,food,automobile,residential,air purifying;ventilation system,air conditional system, furnace system etc

Features :
1.High efficiency for H13,h14,is the finally filtration in clean room that use for filter the particles more than 0.3um.
2.Large dust holding capacity ,the filter media adopts the ultra-thin glass fiber, the hot melt glue spacing each pleats in regular so that achieve high dust volume.
3.Frame: stainless steel, aluminum alloy, galvanized plate
4.Filter media: filter cotton,glass fiber, synthetic fiber, Polyester

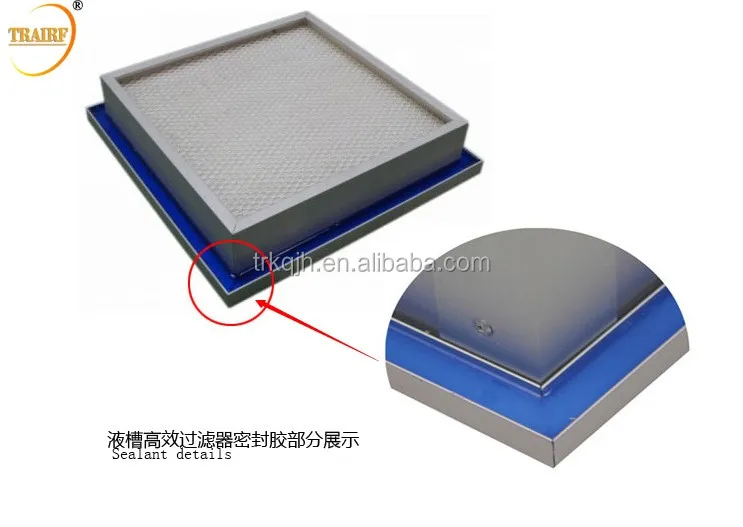

5.Sealant around the media prevent the air filter is without any air leaking.
6.HEPA filter with metal screens,prevent the media is without any damage.
7.Light weight for easy to install.


Materials:

Frame
Extruded aluminium,stainless steel, aluminum alloy, galvanized plate
Filter Media
Antibacterial Glassfiber
Protect Net
Aluminium mesh
Seprator
Hot melt
Sealant
Polyurethane
Gasket
EVA

Parameters:

Model
Dimesions(mm)
Airflow(m3/h)
Initial Resistance(Pa)
Efficiency(%)(0.3um)
Dust Capacity(g)
TR-YCGX-1
610*610*50
700
≤220 or ≤140 HV
≥ 99.99
450
TR-YCGX-2
915*610*50
1000
≤220 or ≤140 HV
≥ 99.99
680
TR-YCGX-3
1220*610*50
1400
≤220 or ≤140 HV
≥ 99.99
900
TR-YCGX-4
610*610*69
1000
≤220 or ≤140 HV
≥ 99.99
560
TR-YCGX-5
915*610*69
1500
≤220 or ≤140 HV
≥ 99.99
840
TR-YCGX-6
1220*610*69
2000
≤220 or ≤140 HV
≥ 99.99
1120
TR-YCGX-7
610*610*80
1200
≤220 or ≤140 HV
≥ 99.99
650
TR-YCGX-8
610*610*90
1400
≤220 or ≤140 HV
≥ 99.99
750
TR-YCGX-9
610*610*100
1600
≤220 or ≤140 HV
≥ 99.99
850
TR-YCGX-10
1170*570*69
1800
≤220 or ≤140 HV
≥ 99.99
1000
TR-YCGX-11
1170*570*80
2200
≤220 or ≤140 HV
≥ 99.99
1250
TR-YCGX-12
1220*610*90
2500
≤220 or ≤140 HV
≥ 99.99
1300
TR-YCGX-13
1220*610*90
2800
≤220 or ≤140 HV
≥ 99.99
1500
TR-YCGX-14
1220*610*100
3200
≤220 or ≤140 HV
≥ 99.99
1700
Detailed Images

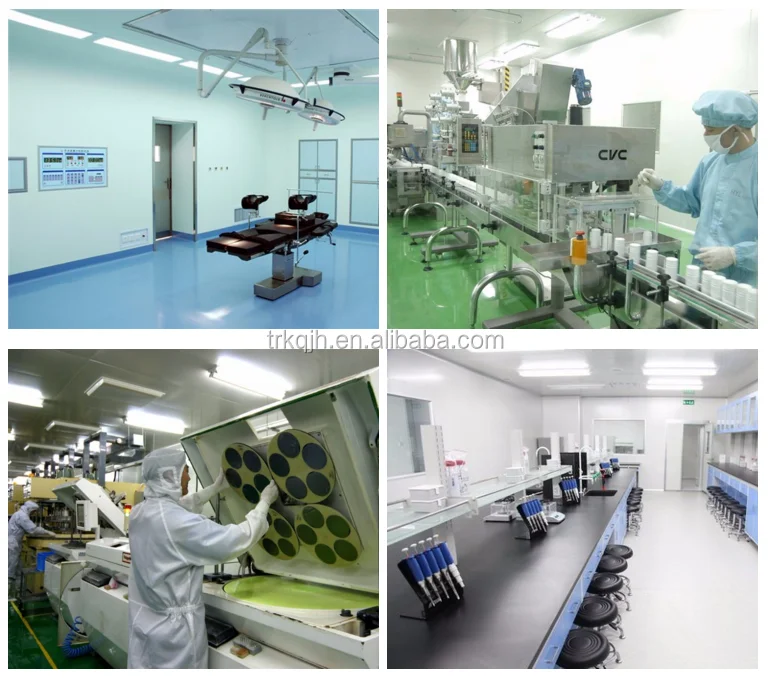

Applications

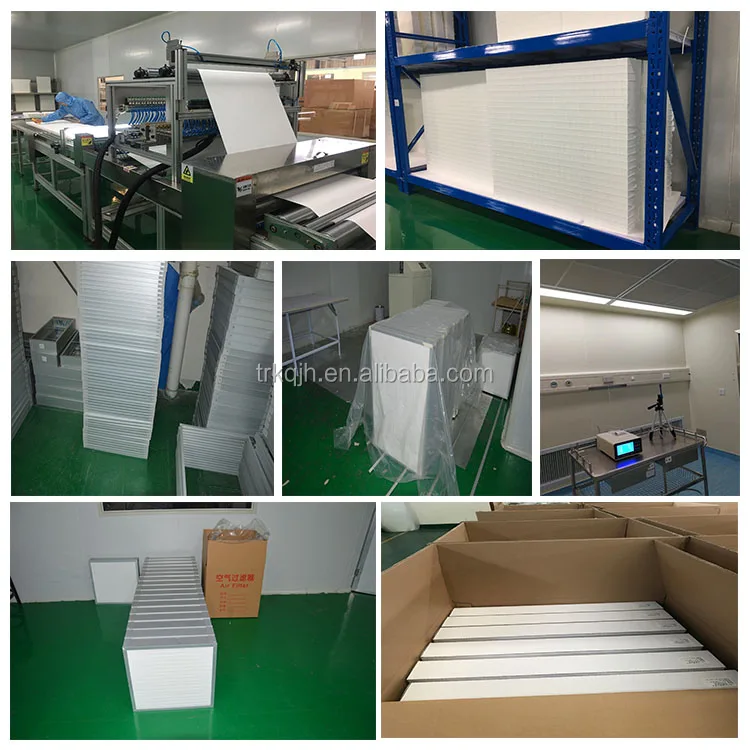

Our Workshop

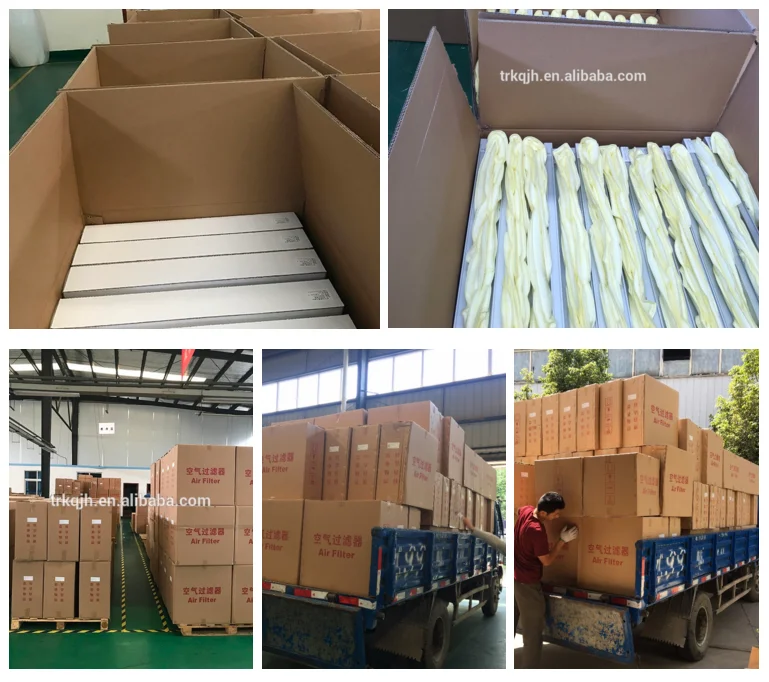

Packing & Delivery
About US

Chengdu Tianrui Air Purification Equipment Co.,Ltd was established in 2013 known as a sustainable development enterprise,specialized in Manufacturing, Research & Development and Marketing all kinds of air filter media.Company own a group of high level professional staff and advanced production,quality inspection equipment.

Our Main products: HEPA filters, High efficiency air filters,Medium-efficiency air filter, Primary filter,Pocket air filter, Activated carbon air filter,W-types High Efficiency air filter ,air purify equipment; filter materials etc.Our products are widely used in Medical electronics, clean room, laboratory,HVAC System,Automobile manufacture,nuclear industry and other industries of air purification.

High quality create brand, all our products are passed ISO9001:2008 ,CE certification to make sure provide best products to our clients; Excellent service win good reputation and long term cooperation relationship between our business partners. Using Tianrui Air Filter to Save More Green for Our Home!
